WHB-10
PY

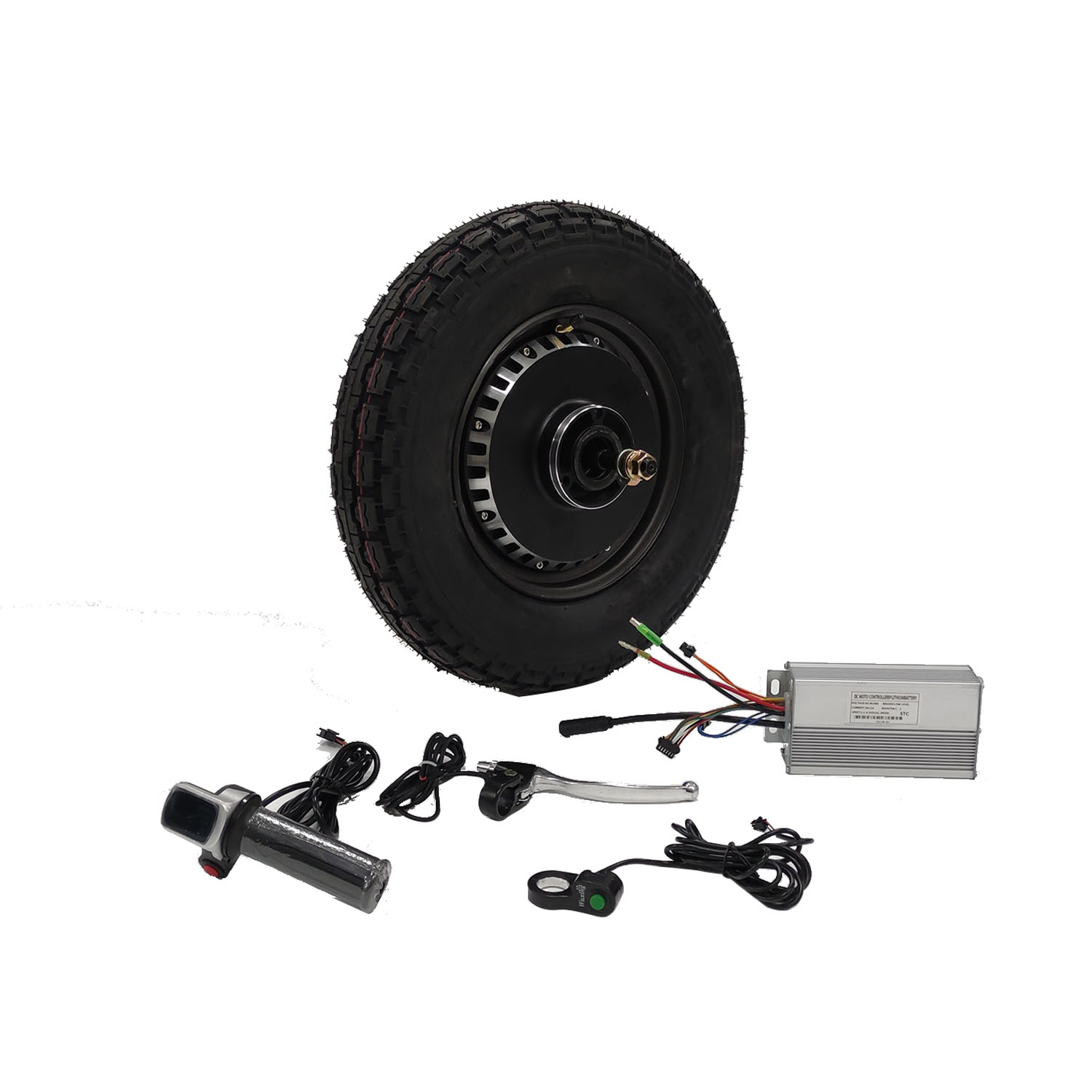

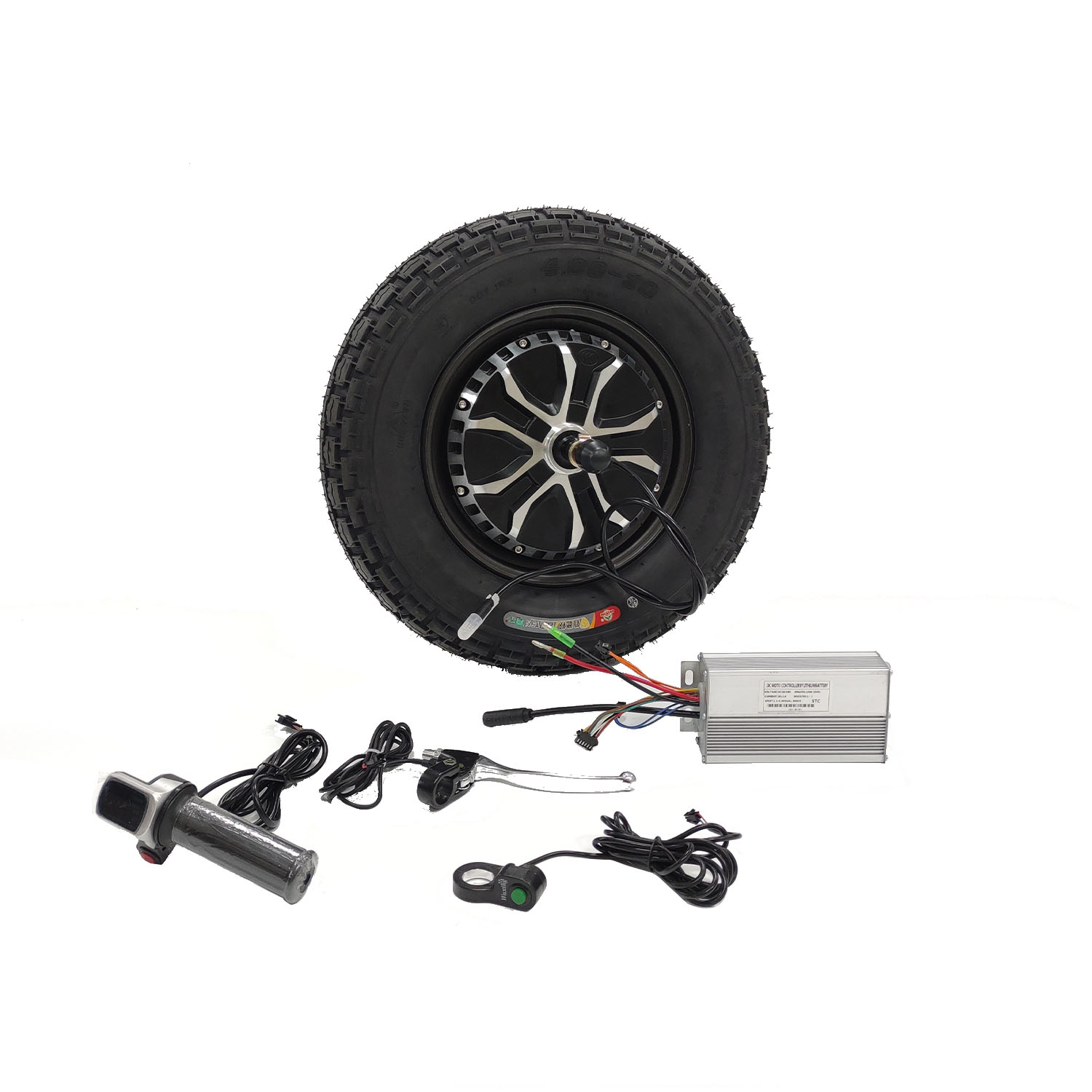

36V1000W wheelbarrow motor kit,including Controller/Throtttle with display/Reverse button/E-brake/Tire.
Specifications:
| Model: | WHB-10 |
| Wheel size(inch): | 10inch |
| Spokes: | None |
| Voltage(V): | 36 |
| Wattage(W): | 1000 |
| Cabling: | Left |
| Ration: | Gearless |
| RPM(r/min): | 100RPM or 5km/h |
| Open size(mm): | 170-197mm |
| Brake: | None |
| Torque(N.m): | 60 |
| Load(KGS): | 200KG |
| Hall sensor: | Yes |
| Efficiency(%): | 80 |
| Weight(kg): | 10kg with tire |
Controller:36V 26A with reverse function.
Throttle:Twist with LED battery capacity display.
Reverse button:Green button SM 2pin connector,keep pushing button for motor reverse.
E-brake:Cut off.
Tire:400-10 tire,tubeless.250KGS load.
