SH01 Single Shaft Motor

9pin waterproof connector/bullet connector,hall sensor speed sensor intergrated,black,36 spokes 13G.
Wheel size:
16inch
20inch
24inch
26inch
Wattage:
250W
350W
Colour:
Black
Silver
Availability:
Quantity:
Inquire Add to Basket

  • SH01

  • PY

Product Description

This is Single shaft Disc brake geared hub motor with 250W/350W wattage,It is black or silver.Can be used for wheelchair,

Specifications:

Model: SH01
Wheel size(inch): 16-26
Spokes: 36/13G
Voltage(V): 36/48
Wattage(W): 250/350
Cabling: Right/Left
Ration:
 4.8:1
RPM(r/min):
 200-400
Open size(mm):
 142
Brake:
 Disc Brake
Torque(N.m):
 28/36
Speed sensor:
 Yes 1/6
Hall sensor: Yes
Efficiency(%):
 82
Weight(kg):
 3.0

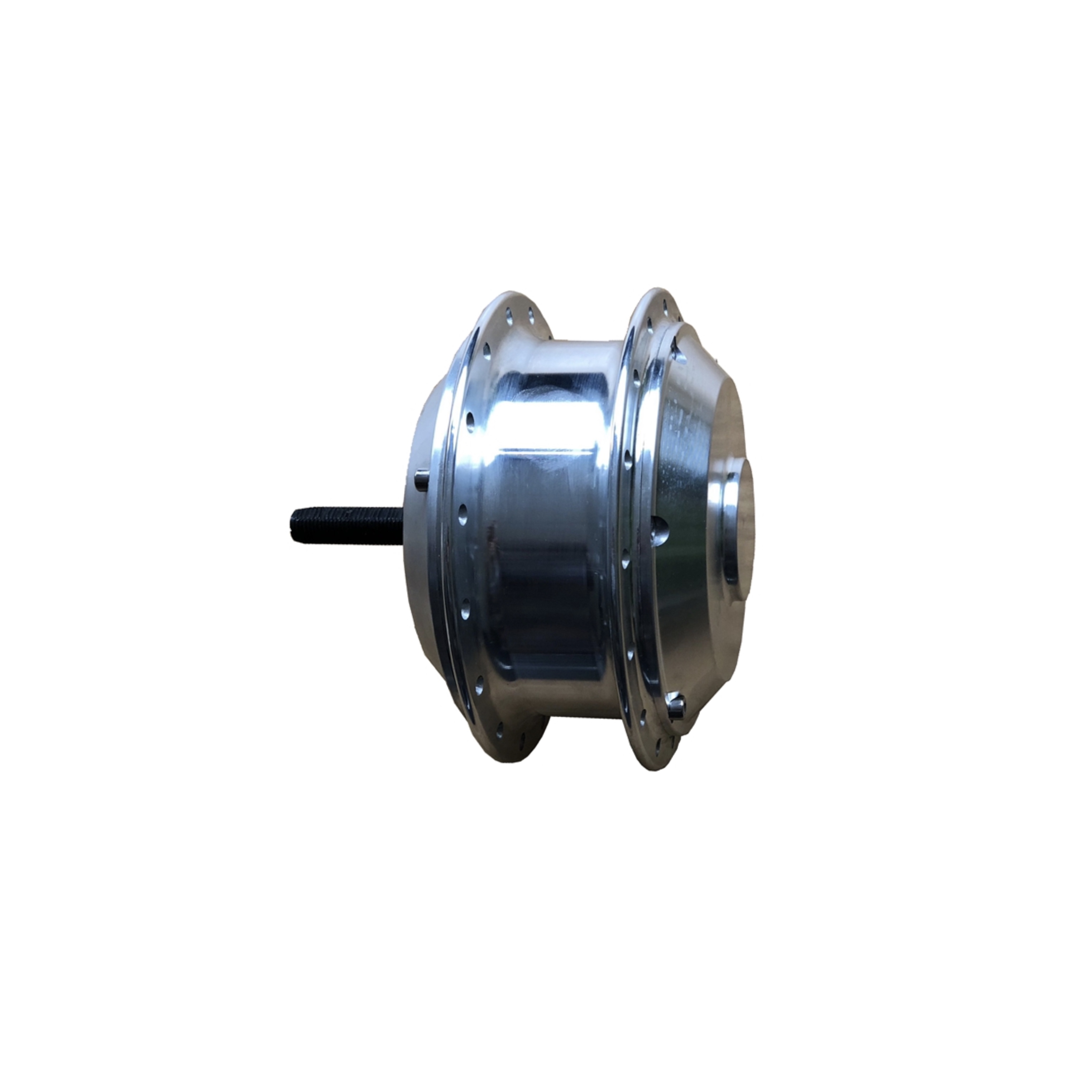

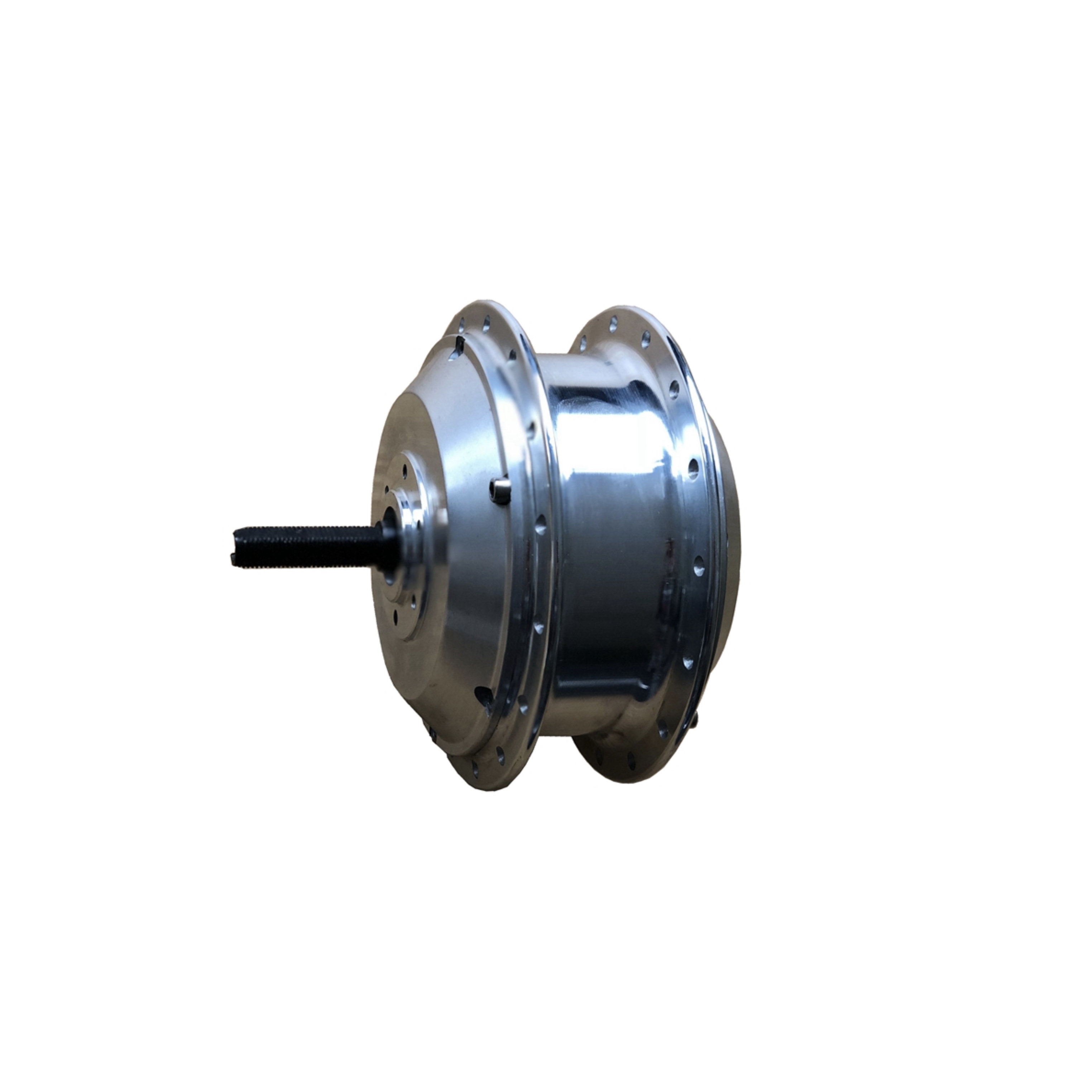

one sided motor geared 250wOne shaft hub motor 250w wheelchair

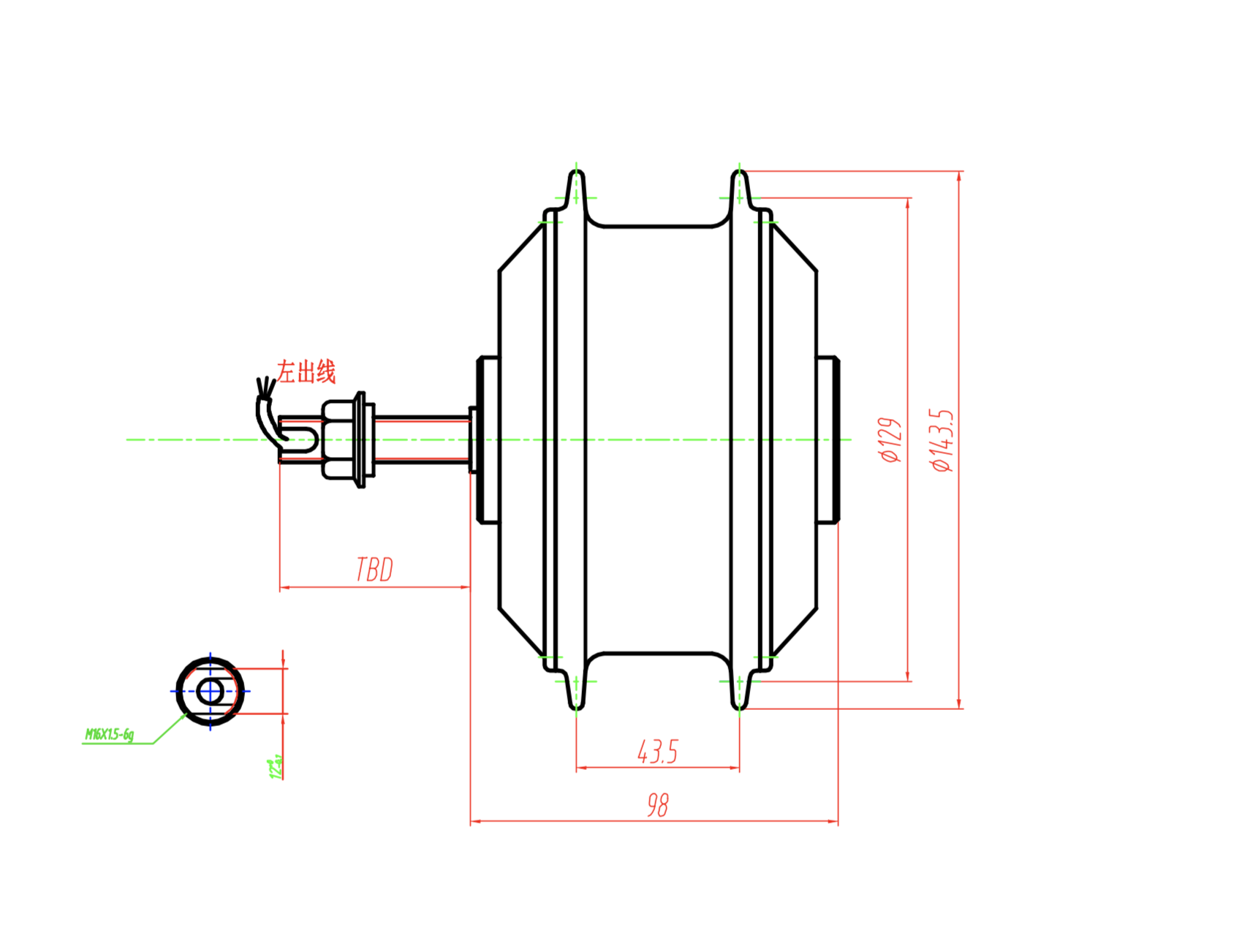

Drawing

single shaft motor 350w ebike
