PY-250W Rear Drive Single Freewheel Geared Hub Motor

9pin waterproof connector,hall sensor speed sensor intergrated,black,36 spokes 13G.
Wheel size:
20inch
24inch
26inch
700C
Wattage:
250W
350W
Color:
Black
Silver
Availability:
Quantity:
Inquire Add to Basket

  • PY-250W

  • PY

Product Description

This is Rear drive geared hub motor with 250W/350W wattage,single speed freewheel version.Can be used for MTB or Citybike,it can be black and silver.

Specifications:

Model: PY-250W
Wheel size(inch): 20-28
Spokes: 36/13G
Voltage(V): 36/48
Wattage(W): 250/350
Cabling: Left
Ration:
 5.17:1
RPM(r/min):
 200-400
Open size(mm):
 130
Brake:
 Disc Brake
Torque(N.m):
 40/45
Speed sensor:
 Yes 1/6
Hall sensor: Yes
Efficiency(%):
 82
Weight(kg):
 3.0

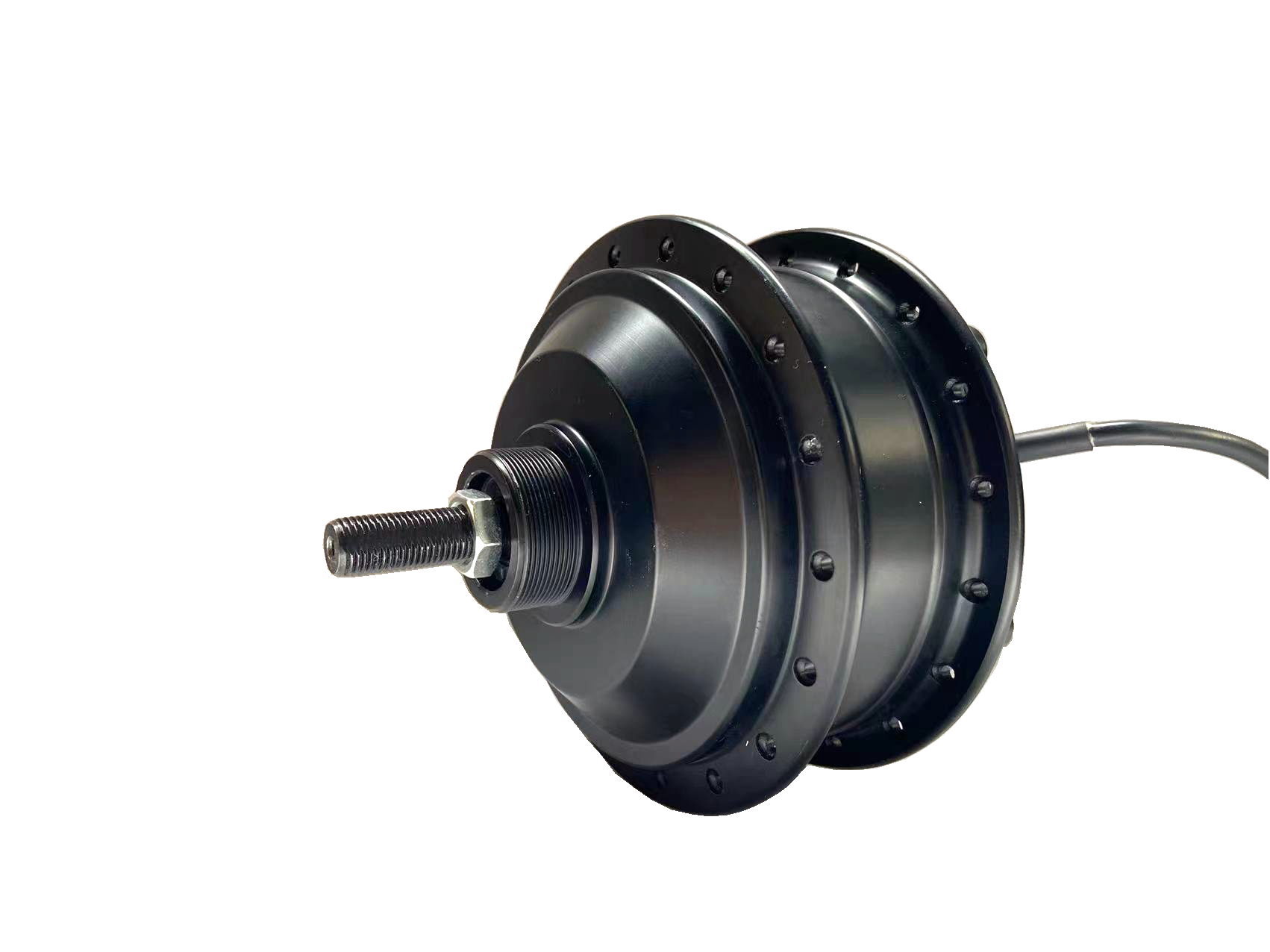

79B1EE028EA1A652DD9AFEEEB2200F38

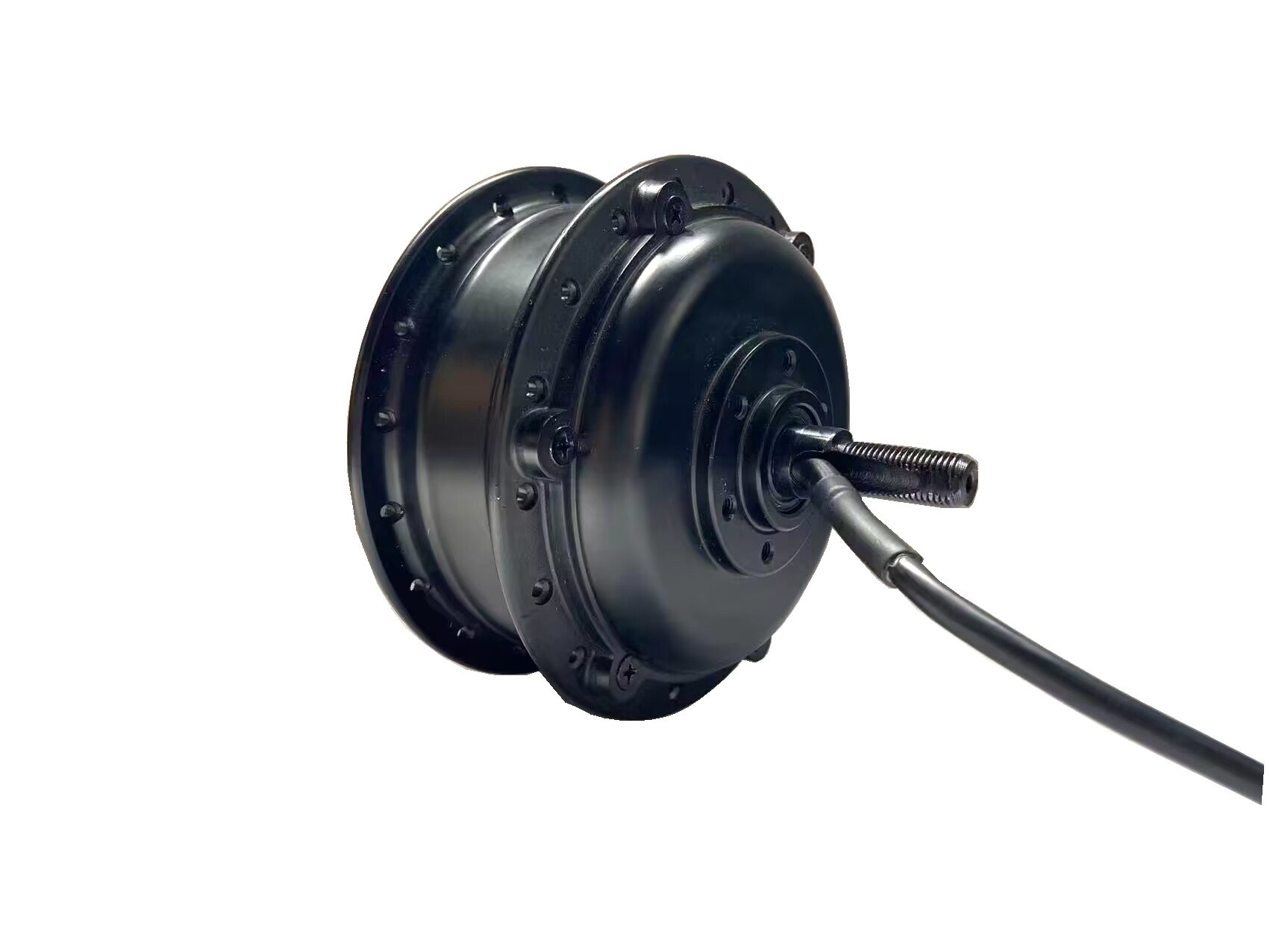

D85E5AA886442EF5CCB2603F449B7A4A

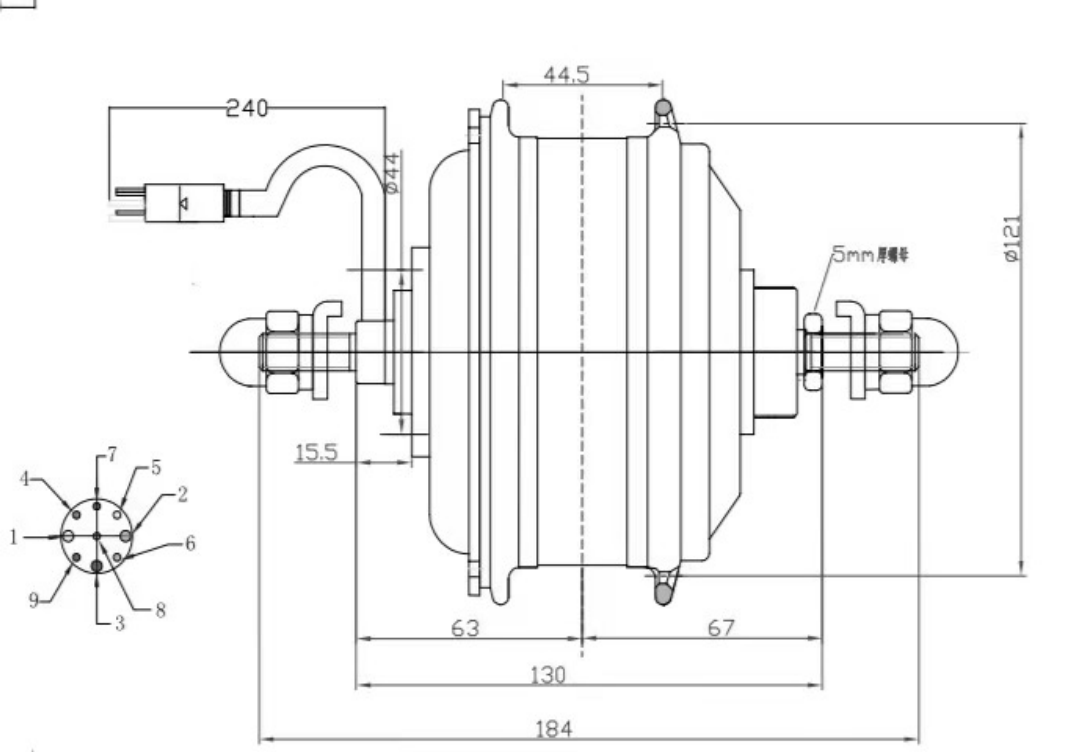

Drawing

Drawing
