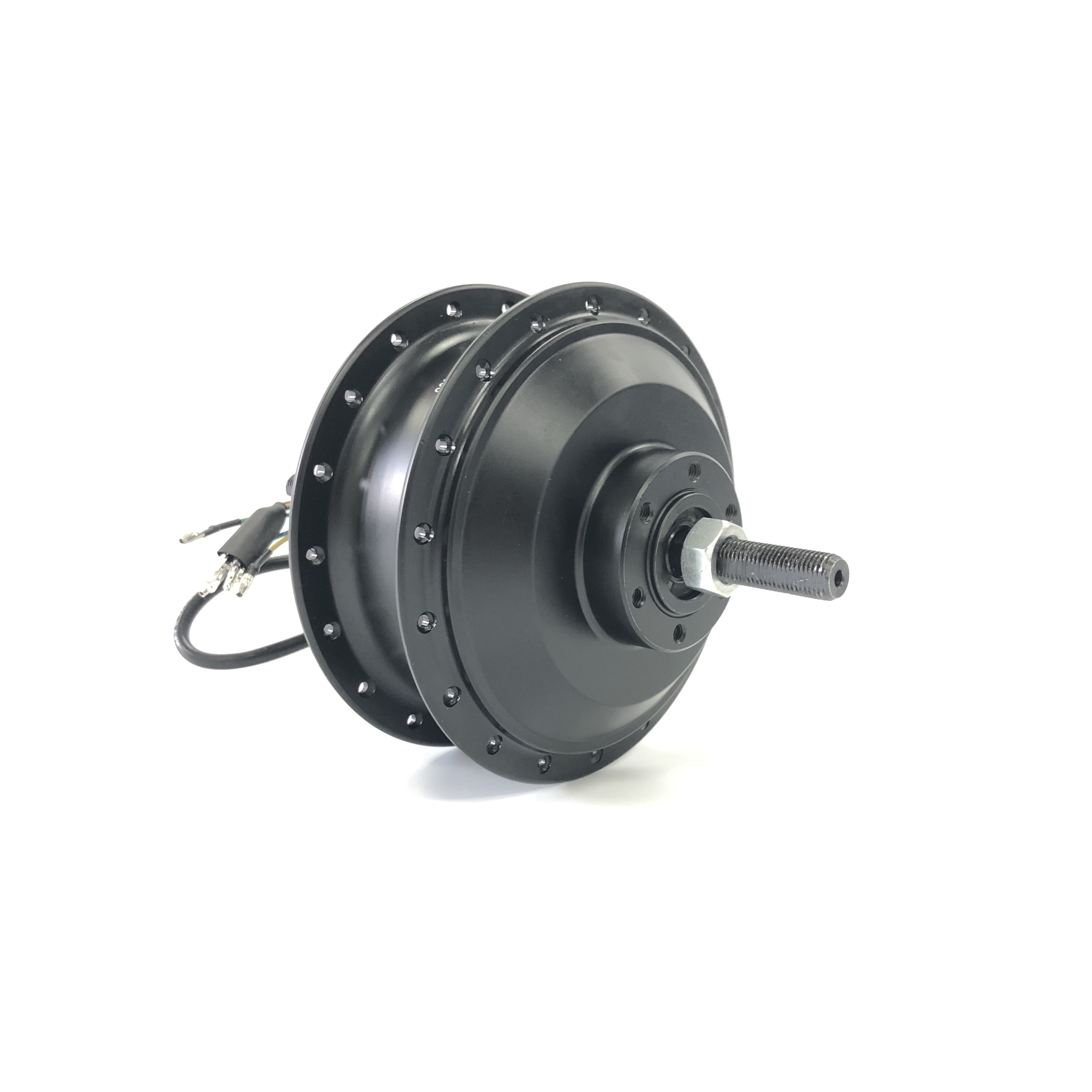

H01-RF Rear Drive Freewheel Geared Hub Motor

9pin waterproof connector/bullet connector,hall sensor speed sensor intergrated,black,36 spokes 13G.
Wheel size:
20inch
24inch
26inch
700C
Wattage:
250W
350W
Color:
Black
Silver
Availability:
Quantity:
Inquire Add to Basket

  • H01-RF

  • PY

Product Description

This is Rear drive geared hub motor with 250W/350W wattage,freewheel version disc brake.Can be used for MTB or Citybike,it can be black and silver.

Specifications:

Model: H01-RF
Wheel size(inch): 16-28
Spokes: 36/13G
Voltage(V): 36/48
Wattage(W): 250/350
Cabling: Right
Ration:
 4.8:1
RPM(r/min):
 200-400
Open size(mm):
 145
Brake:
 Disc Brake
Torque(N.m):
 28/36
Speed sensor:
 Yes 1/6
Hall sensor: Yes
Efficiency(%):
 82
Weight(kg):
 3.2

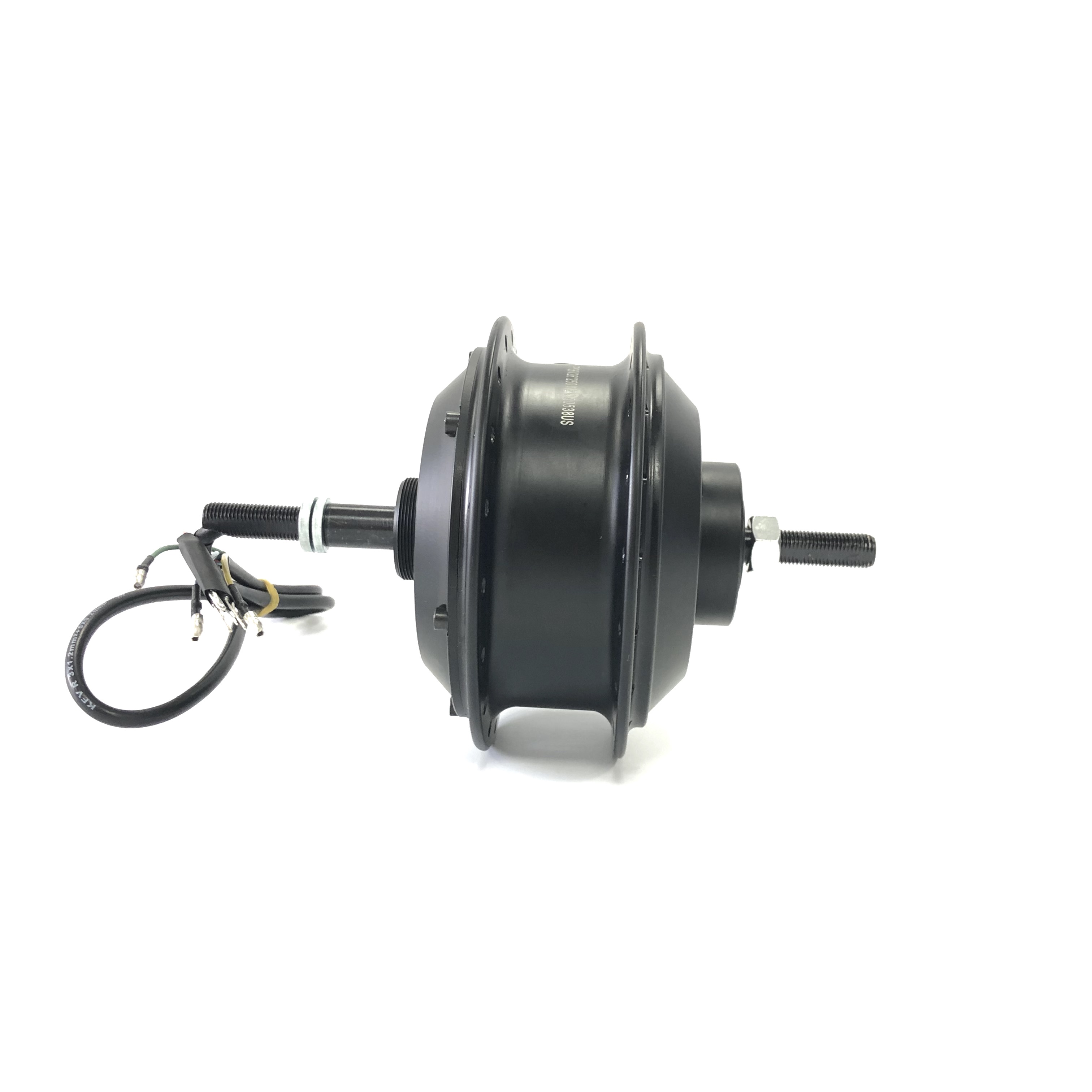

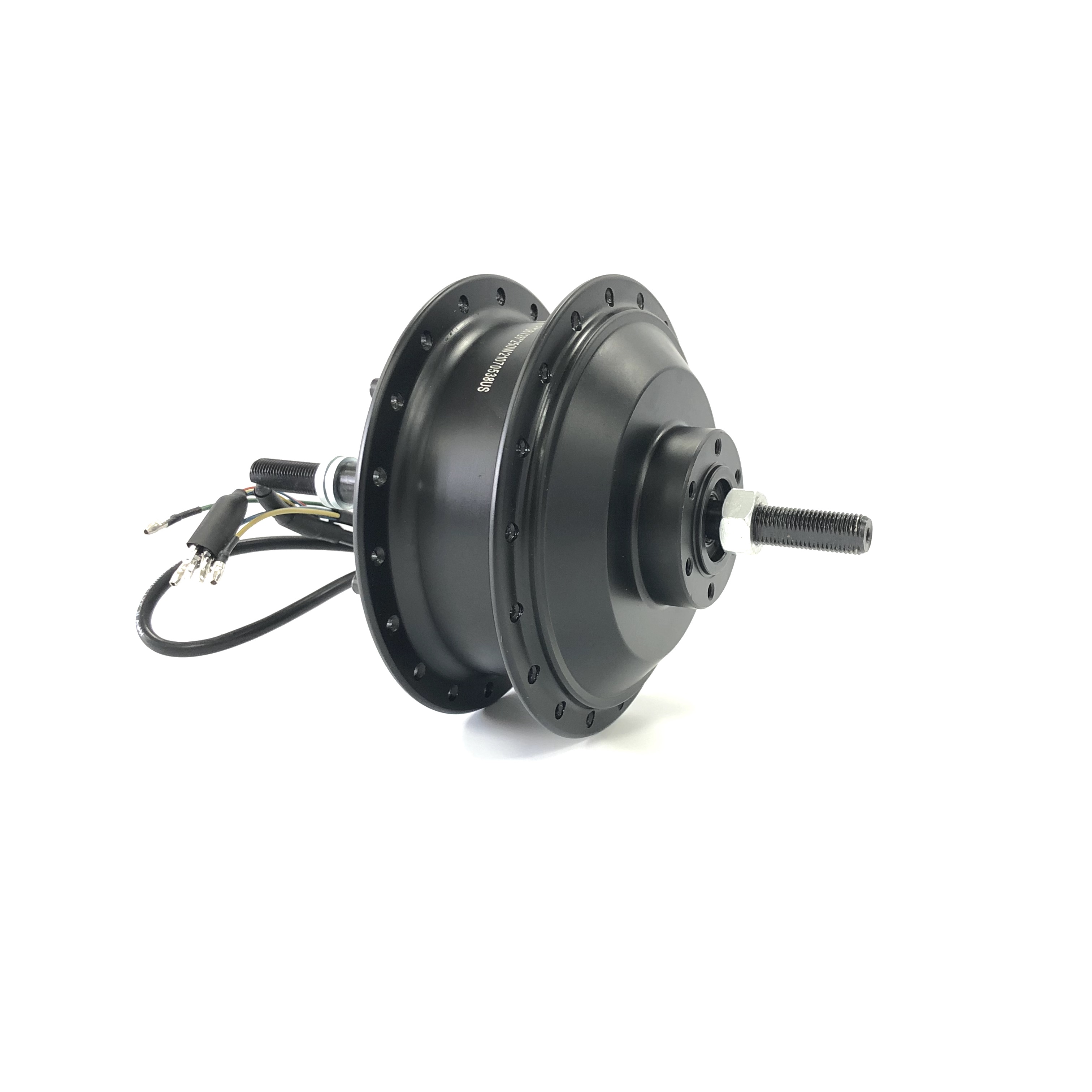

350w geared hub motor rear drive250w citybike motor geared black disc brake
