FAT-RFL3K Rear Drive Freewheel Gearless Hub Motor

3000W gearless hub motor,rear drive, with 2xhall sensor cable,black,36 spokes 13G.Left side cabling.Laced with 26inch fat wheel 26x4.0
Wheel size:
20inch
24inch
26inch
700C
28inch
Wattage:
1000W
2000W
3000W
Color:
Black
Availability:
Quantity:
Inquire Add to Basket

  • FAT-RFL3K

  • PY

Product Description

The rated 3000W gearless hub motor with disc brake,7S freewheel body, 170mm dropouts.Left cabling with 2xhall sensor wire.Voltage 60V/72V

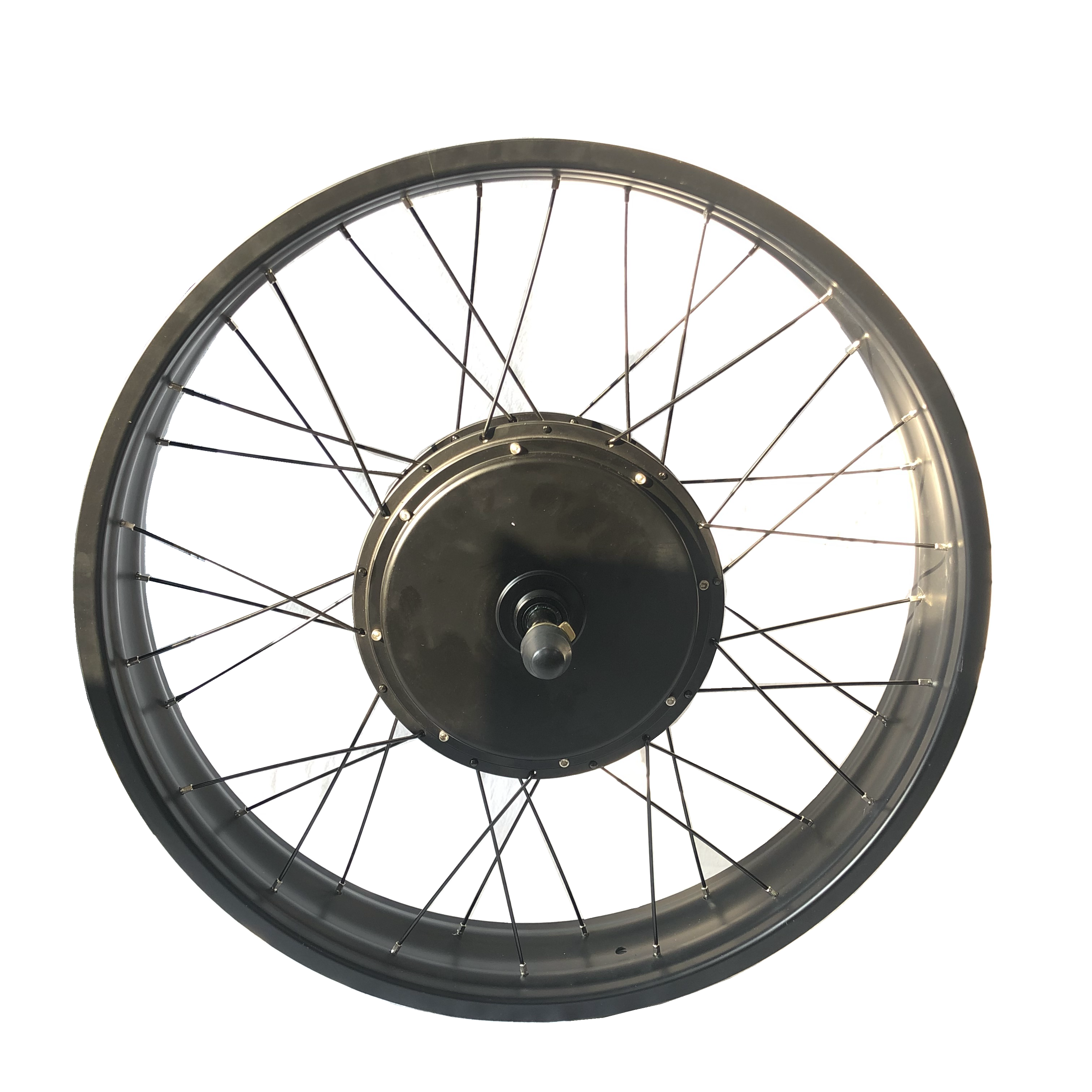

1000w hub motor

Specifications:

Model: FAT-RFL3K
Wheel size(inch): 20-28
Spokes: 36/13G
Voltage(V): 60V/72V
Wattage(W): 1000/2000/3000W
Cabling: Left
Ration:
 Gearless
RPM(r/min):
 400-600
Open size(mm):
 170
Brake:
 Disc Brake
Hall sensor: Yes
Efficiency(%):
 80
Weight(kg):
 11

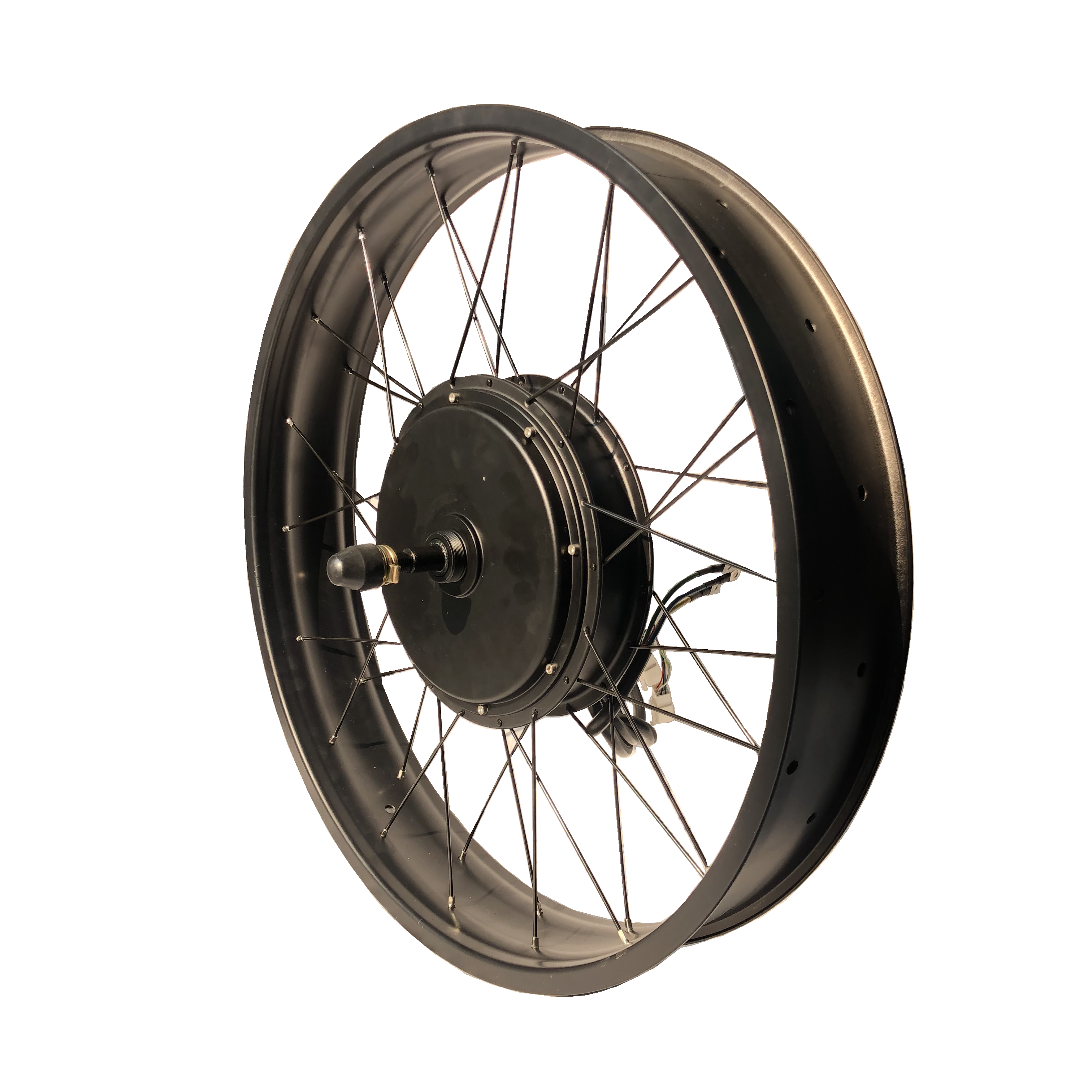

3000W fat hub motor




Drawing

Drawing

FAT bike motor
