FAT-F Front Drive Geared Hub Motor

9pin waterproof connector,hall sensor speed sensor intergrated,black,36 spokes 13G.
Wheel size:
20inch
24inch
26inch
700C
28inch
Wattage:
500W
750W
Color:
Black
Availability:
Quantity:
Inquire Add to Basket

  • FAT-F

  • PY

Product Description

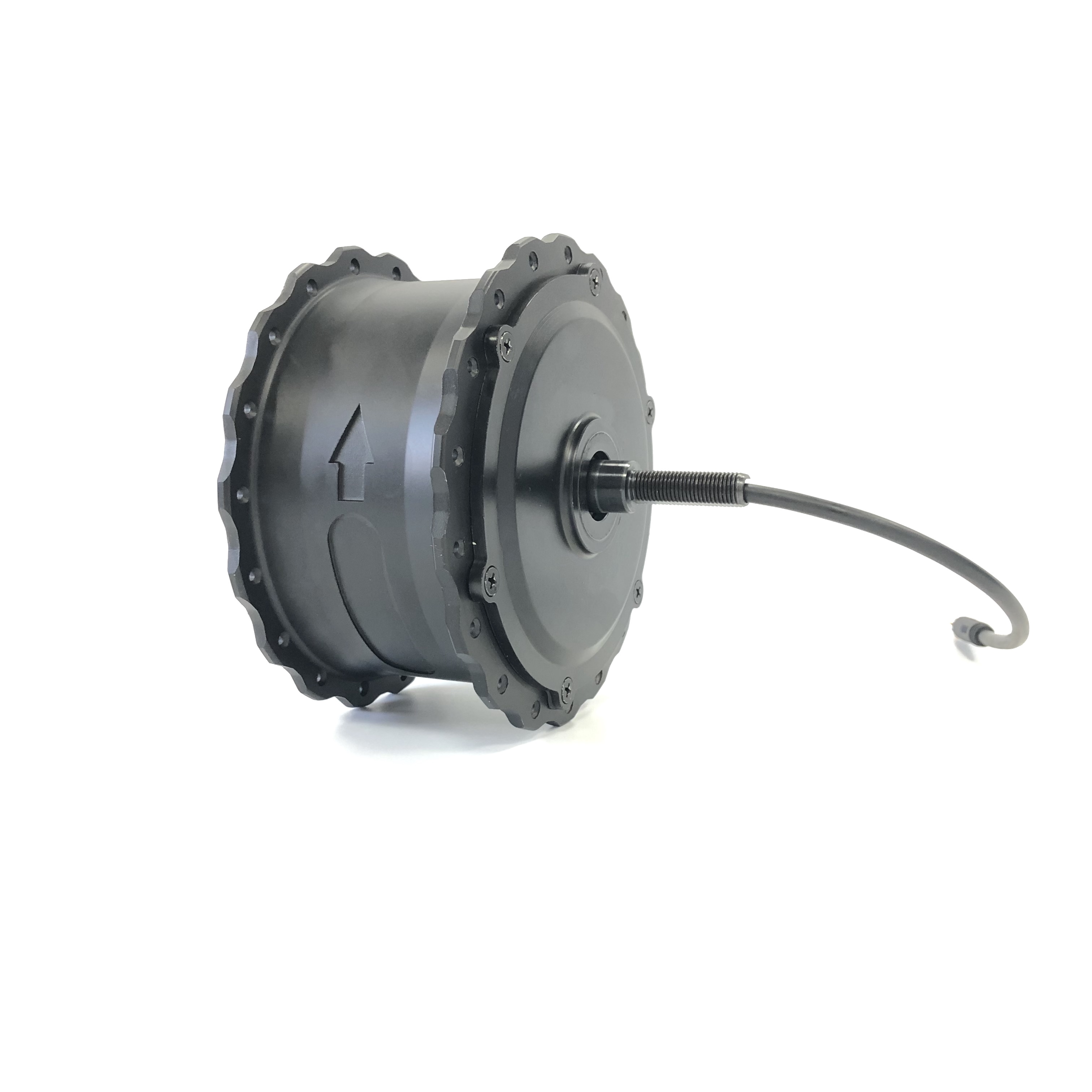

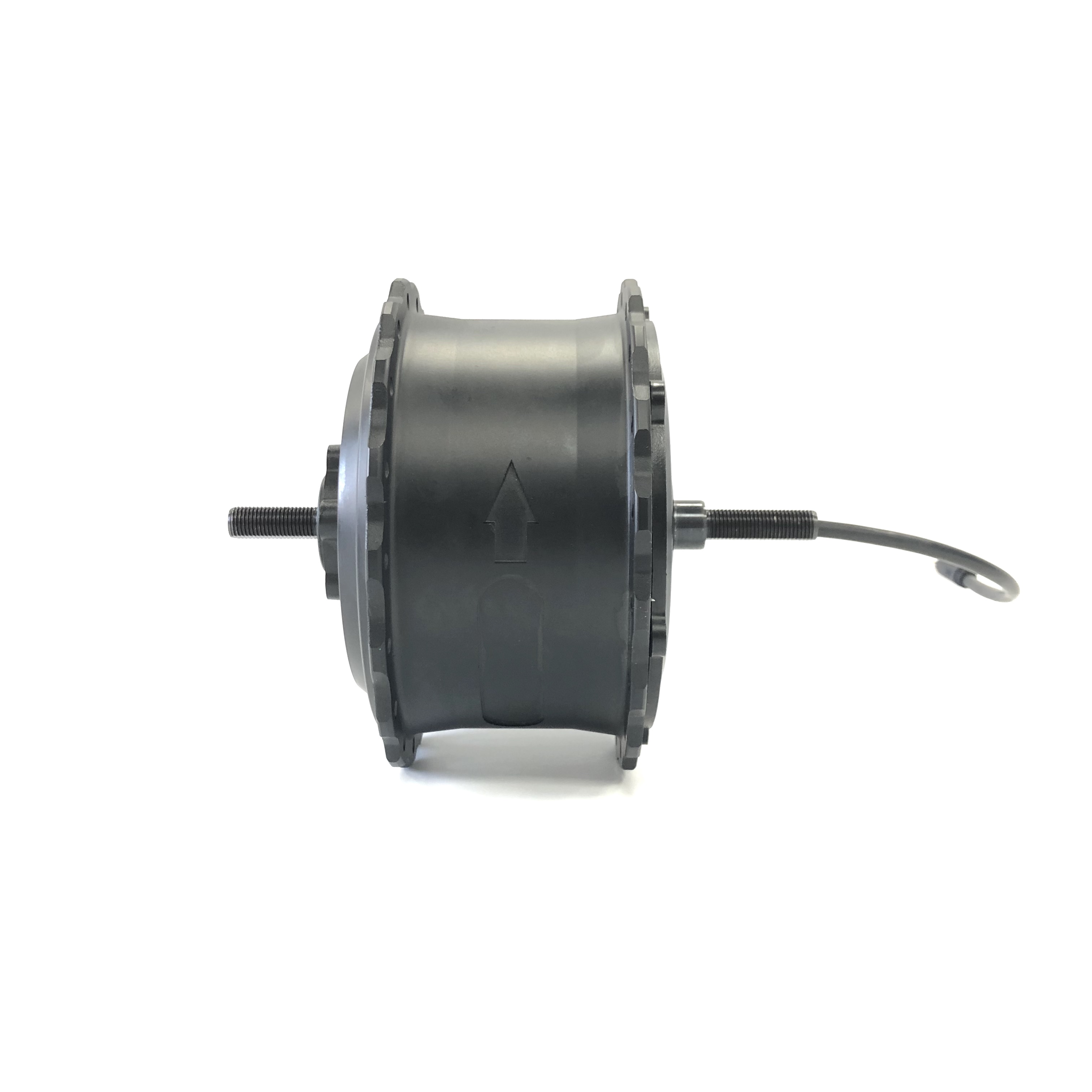

This is Fat hub motor geared front drivemotor with 500W/750W wattage.

Specifications:

Model: FAT-F
Wheel size(inch): 20-28
Spokes: 36/13G
Voltage(V): 36/48
Wattage(W): 500/750
Cabling: Right
Ration:
 5:1
RPM(r/min):
 200-400
Open size(mm):
 135
Brake:
 Disc Brake
Torque(N.m):
 42/54
Speed sensor:
 Yes 1/6
Hall sensor: Yes
Efficiency(%):
 80
Weight(kg):
 4.6

Fat hub motor front drivefront motor fat bike
